Transition State Search

Overview

A transition state (TS) is a first-order saddle point on the potential energy surface (PES). It is characterized by exactly one imaginary vibrational frequency, corresponding to the reaction coordinate that connects reactant and product basins. Finding accurate TS geometries is essential for computing activation energies, predicting reaction rates, and understanding reaction mechanisms.

Unlike local minima, a TS is a maximum along one direction (the reaction coordinate) and a minimum along all remaining degrees of freedom. The unique imaginary mode of the mass-weighted Hessian at the TS defines the direction of bond breaking and bond forming.

Available Methods

MAPLE provides five transition state search algorithms, each suited to different problem types:

Method Keyword Description
P-RFO prfo Partitioned Rational Function Optimization. Refines a guess geometry near the TS using trust-region steps that maximize along one Hessian mode while minimizing along all others.
NEB neb Nudged Elastic Band. Requires reactant and product structures. Builds a minimum energy path (MEP) using a chain of images connected by spring forces.
Dimer dimer Minimum-mode following method. No endpoint structures needed. Uses two images separated by a small distance to estimate and follow the lowest curvature mode.
String/GSM string Growing String Method. Adaptive path growth from both endpoints followed by the current String-TS finalization path.
AutoNEB autoneb Automated multi-step NEB workflow. Recursively subdivides the reaction path to discover all intermediates and transition states in complex multi-step reactions.

Choosing a Method

The best method depends on what information you have and the complexity of the reaction:

  • You have a good TS guess (e.g., from a previous NEB or chemical intuition) → Use P-RFO for fast local refinement.
  • You have both reactant and product structures → Use NEB or String/GSM to find the MEP and locate the TS along it.
  • You only have one structure and no product → Use the Dimer method to explore the PES landscape from a single starting point.
  • The reaction has multiple steps or intermediates → Use AutoNEB to automatically discover all stationary points along the pathway.
  • Large systems with many atoms → String/GSM is often more efficient than NEB due to adaptive path growth.

General Workflow

A typical transition state search workflow follows these steps:

  1. Optimize endpoints. Ensure your reactant and product geometries are properly optimized local minima. Poorly optimized endpoints can cause path-based methods to fail or converge to spurious saddle points.
  2. Run the TS search. Choose an appropriate method (neb, string, dimer, or prfo) and run the calculation. For path-based methods, the highest-energy image (HEI) provides an initial TS estimate.
  3. Refine the TS. For NEB, use refine=cineb or refine=nebts. For String/GSM, use refine=cistring or refine=stringts; other TS methods reject refine.
  4. Verify with a frequency calculation. Confirm the TS has exactly one imaginary frequency. If there are zero or more than one imaginary frequencies, the geometry is not a true first-order saddle point.
  5. Run IRC. Perform an intrinsic reaction coordinate (IRC) calculation from the TS to confirm that it connects the expected reactant and product.

Refine Options Lookup

refine is an optional parameter inside the #ts(...) command. It is not a separate header line. Use it only with methods that accept a second refinement stage; omit it when you want the base TS search workflow.

# Base NEB path search
#ts(method=neb)

# NEB path search followed by NEBTS refinement
#ts(method=neb,refine=nebts)

# String/GSM path search followed by String-TS refinement
#ts(method=string,refine=stringts)

# P-RFO, Dimer, and AutoNEB do not accept refine
#ts(method=prfo)

Use this table to match each accepted refine value with the TS workflow it triggers. Unsupported method/refine combinations are rejected during input parsing.

TS Method refine Value Accepted? Workflow Meaning Main Output
neb None Yes Run the base NEB path search and extract the highest-energy image. *_mep.xyz, *_hei.xyz
neb cineb Yes Run NEB, then climb the highest-energy image with CI-NEB. *_cineb_*.xyz
neb nebts Yes Run NEB, refine the path with CI-NEB, then optimize the TS with P-RFO. *_nebts_mep.xyz, *_nebts_ts.xyz
string None Yes Run the base String/GSM path search and extract the highest-energy image. *_gsm_mep.xyz, *_gsm_hei.xyz
string cistring Yes Accept the CI-String-style refinement setting for the String/GSM workflow. *_gsm_mep.xyz, *_gsm_hei.xyz
string stringts Yes Run String/GSM, select the highest-energy image, then optimize the TS with P-RFO. *_stringts_mep.xyz, *_stringts_ts.xyz
prfo, dimer, autoneb Any value No These methods do not accept refine; run them without a refine keyword. Method-specific TS/search outputs

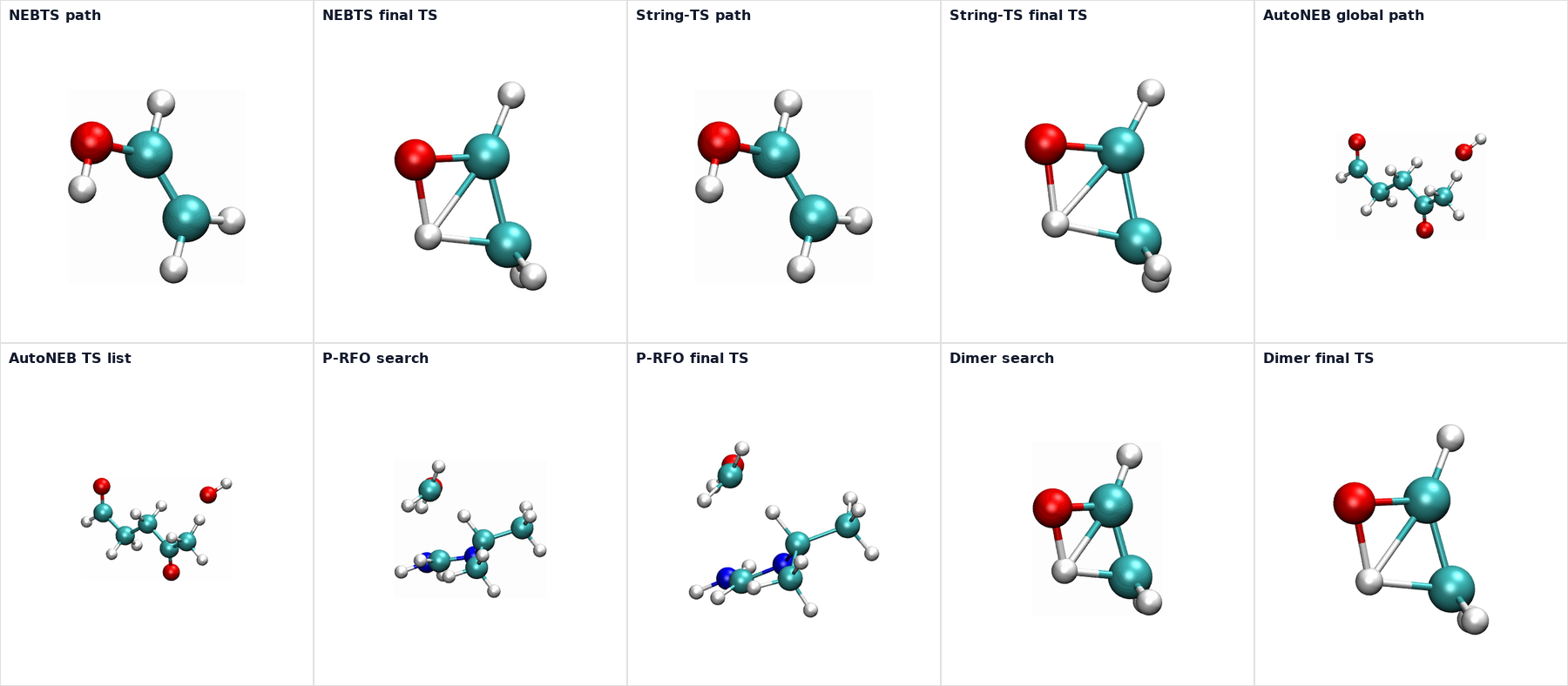

The gallery below uses the checked-in TS example outputs rendered with MAPLE Visual Lab. Atom indices are hidden in these web-ready figures. Path and search animations on the method pages include energy traces, while single-geometry TS snapshots are shown as structure-only figures.

Transition state visualization gallery for P-RFO, NEBTS, Dimer, String-TS, and AutoNEB
Fig. 1 — Structure-only overview of TS example visualizations.
Note

TS refinement keywords are method-specific. MAPLE validates them during input parsing: NEB accepts cineb and nebts; String/GSM accepts cistring and stringts; P-RFO, Dimer, and AutoNEB do not accept refine.
